Spherical Plain Bearings
Spherical plain bearings are manufactured in a wide variety of materials and are designed to offer bearing solutions in almost any operating environment. AST Bearings offers a complete line of spherical bearings available in inch and metric. These High-Quality Spherical Plain Bearings are suitable for heavy-duty, off-highway vehicles, agricultural equipment, construction and mining and logging equipment, packaging and textile equipment, and robotics. The plain bearings come in standard industrial bore sizes from 0.5" to 12" inches, as well as metric sizes from as small as 4 to 300 mm. Custom sizes can also be ordered.
Bearings Catalog
Check out our online product catalog with more than 10,000 products with full specifications & 3D CAD Models available for download - all free of charge!

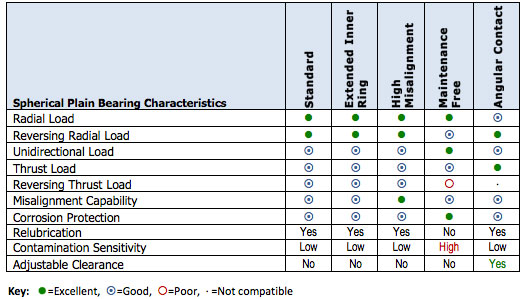

Spherical Plain Bearings Characteristics

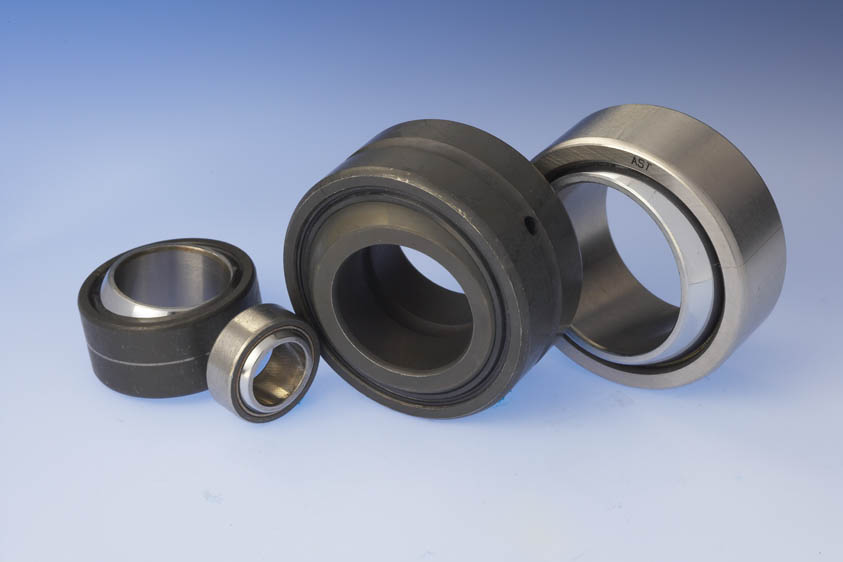

Spherical Plain Bearings (also known as “Spherical Plane Bearings” "Spherical Ball Bushing Bearings" and “Ball Bushings”) have an inner ring with a sphere convex outside surface and an outer ring with a correspondingly sphere, but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to accommodate, or where oscillating or recurrent tilting movements must be permitted at relatively slow sliding speeds.
AST’s spherical plain bearings are divided into two main categories based upon the need and ability for lubrication. Click on any of the two below to read more about them:
Spherical Plain Bearings Product Types
AST is a premier spherical plain bearings supplier and supplies nearly 1,000 different spherical plain bearings products. If you already know which type of spherical plain bearing is right for your application, you can quickly navigate to it below for more information:
If you need help in selecting the best products for your particular application, please remember that design engineering and application assistance are available from AST as part of our value-added services designed to make your job easier.
There are other types of "spherical bearings" including rod ends, spherical ball bearings and spherical roller bearings. To learn more about the various kinds of spherical bearings, please visit "Spherical Bearings – Accommodating Misalignment" which explains the similarities and differences between the various types.
There are a number of technical papers on this website found in our Resource Center about spherical plain bearings. Some of them are listed below:
AST Bearings' comprehensive spherical plain bearings catalog contains detailed specifications and 3D CAD models for 995 different spherical plain bearings in 14 categories. Click here to go to our online catalog and product specifier for our full line of Spherical Plain Bearings including free 3D CAD model downloads. As a leading spherical plain bearings supplier, AST will provide you "value beyond the part."
.webp)
%20(1)%20(1).webp)
.webp)
