- Bearings Catalog
- >
- Ball Bearings
- >
- Double Row Angular Contact
Double Row Angular Contact

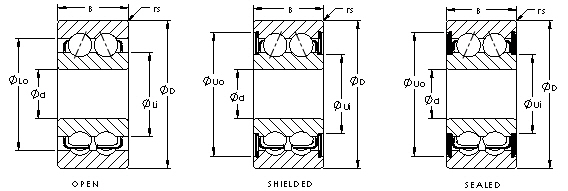

5200 and 5300 Series: Open, Shielded, Sealed - Metric
| 1-30 of 108 Products | Sort by: |
| Product | Bearing Type | Bore Dia (d) (mm) | Outer Dia (D) (mm) | Width (B) (mm) | Radius (min) (rs) (mm) | Dynamic Load Rating (Cr) (N) | Static Load Rating (Cor) (N) |
| 5200 | open | 10.000 | 30.000 | 14.287 | 0.60 | 7,150 | 3,900 |
| 5201 | open | 12.000 | 32.000 | 15.875 | 0.60 | 10,600 | 5,850 |
| 5202 | open | 15.000 | 35.000 | 15.875 | 0.60 | 11,700 | 6,950 |
| 5203 | open | 17.000 | 40.000 | 17.462 | 0.60 | 14,800 | 9,000 |
| 5204 | open | 20.000 | 47.000 | 20.638 | 1.00 | 19,500 | 12,200 |
| 5304 | open | 20.000 | 52.000 | 22.225 | 1.10 | 22,500 | 14,600 |
| 5205 | open | 25.000 | 52.000 | 20.638 | 1.00 | 21,200 | 14,600 |
| 5305 | open | 25.000 | 62.000 | 25.400 | 1.10 | 30,700 | 20,400 |
| 5206 | open | 30.000 | 62.000 | 23.812 | 1.00 | 29,600 | 21,200 |
| 5306 | open | 30.000 | 72.000 | 30.160 | 1.10 | 41,600 | 29,000 |
| 5207 | open | 35.000 | 72.000 | 26.990 | 1.10 | 37,700 | 27,500 |
| 5307 | open | 35.000 | 80.000 | 34.930 | 1.50 | 49,400 | 34,500 |
| 5208 | open | 40.000 | 80.000 | 30.163 | 1.10 | 44,900 | 34,000 |
| 5308 | open | 40.000 | 90.000 | 36.513 | 1.50 | 60,500 | 43,000 |
| 5209 | open | 45.000 | 85.000 | 30.163 | 1.10 | 48,800 | 39,000 |
| 5309 | open | 45.000 | 100.000 | 39.688 | 1.50 | 72,800 | 53,000 |
| 5210 | open | 50.000 | 90.000 | 30.163 | 1.10 | 48,800 | 39,000 |
| 5310 | open | 50.000 | 110.000 | 44.450 | 2.00 | 85,200 | 64,000 |
| 5211 | open | 55.000 | 100.000 | 33.338 | 1.50 | 57,200 | 47,500 |
| 5311 | open | 55.000 | 120.000 | 49.213 | 2.00 | 106,000 | 81,500 |
| 5212 | open | 60.000 | 110.000 | 36.513 | 1.50 | 70,200 | 58,500 |
| 5312 | open | 60.000 | 130.000 | 53.975 | 2.10 | 121,000 | 95,000 |
| 5213 | open | 65.000 | 120.000 | 38.100 | 1.50 | 80,600 | 73,500 |
| 5313 | open | 65.000 | 140.000 | 58.738 | 2.10 | 138,000 | 108,000 |
| 5214 | open | 70.000 | 125.000 | 39.688 | 1.50 | 88,400 | 80,000 |
| 5314 | open | 70.000 | 150.000 | 63.500 | 2.10 | 153,000 | 125,000 |
| 5215 | open | 75.000 | 130.000 | 41.275 | 1.50 | 95,600 | 88,000 |
| 5315 | open | 75.000 | 160.000 | 68.263 | 2.10 | 168,000 | 140,000 |
| 5216 | open | 80.000 | 140.000 | 44.450 | 2.00 | 106,000 | 95,000 |
| 5316 | open | 80.000 | 170.000 | 68.263 | 2.10 | 182,000 | 156,000 |
