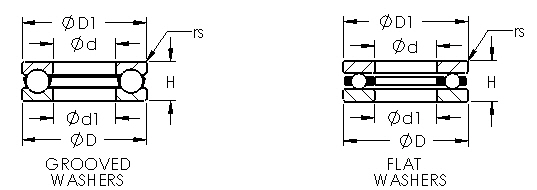

Ball Thrust Bearings

FM, F, 511, 512, 513, and 514 Series: Metric

1-30 of 167 Products   Sort by:
ProductBearing TypeBore Dia (d) (mm)Outer Dia (D) (mm)Height (H) (mm)Dynamic Load Rating (Cr) (N)Static Load Rating (Cor) (N)
F3-8Mwith grooved raceway(s)3.0008.0003.500993590
F4-9Mwith grooved raceway(s)4.0009.0004.000944640
F4-10Mwith grooved raceway(s)4.00010.0004.000925661
F5-12Mwith grooved raceway(s)5.00012.0004.0001,056942
F6-12Mwith grooved raceway(s)6.00012.0004.5001,8191,588
F6-14Mwith grooved raceway(s)6.00014.0005.0002,1551,701
F7-13Mwith grooved raceway(s)7.00013.0004.5001,7671,645
F7-17Mwith grooved raceway(s)7.00017.0006.0003,0862,675
F8-16Mwith grooved raceway(s)8.00016.0005.0003,9173,394
F8-19Mwith grooved raceway(s)8.00019.0007.0003,9393,476
F9-20Mwith grooved raceway(s)9.00020.0007.0003,8553,571
F10-18Mwith grooved raceway(s)10.00018.0005.5002,4702,721
51100with grooved raceway(s)10.00024.0009.00010,00014,000
51200with grooved raceway(s)10.00026.00011.00012,60017,100
51101with grooved raceway(s)12.00026.0009.00010,30015,400
51201with grooved raceway(s)12.00028.00011.00013,00019,000
51102with grooved raceway(s)15.00028.0009.00010,50016,800
51202with grooved raceway(s)15.00032.00012.00015,60024,400
51103with grooved raceway(s)17.00030.0009.00010,80018,200
51203with grooved raceway(s)17.00035.00012.00017,10027,300
51104with grooved raceway(s)20.00035.00021.00014,90026,600
51204with grooved raceway(s)20.00040.00014.00022,10037,700
51105with grooved raceway(s)25.00042.00011.00015,30030,400
51205with grooved raceway(s)25.00047.00015.00027,80050,500
51305with grooved raceway(s)25.00052.00018.00035,40061,500
51405with grooved raceway(s)25.00060.00024.00055,00089,400
51406Mwith grooved raceway(s)30.00070.00028.00067,300113,000
51106with grooved raceway(s)30.00047.00011.00018,60039,900
51206with grooved raceway(s)30.00052.00016.00028,10054,300
51306with grooved raceway(s)30.00060.00021.00042,20078,700
Show 15 More
